What Is a Bathymetric Survey?
Methods, Equipment, Applications and Deliverables
A bathymetric survey is a hydrographic survey used to measure water depth and map the shape, elevation and physical characteristics of underwater terrain.
What Does a Bathymetric Survey Measure?
A bathymetric survey measures the depth of a waterbody and determines the three-dimensional shape of its bottom. Depending on the project, it may identify:
- Water depths and seabed elevations
- Underwater slopes, channels and depressions
- Shoals and potential navigation hazards
- Scour around bridge piers, quay walls and offshore structures
- Dredged and undredged seabed levels
- Submerged debris and seabed obstructions
- Pipeline or cable corridors
- Changes in seabed elevation over tim
- Shoreline and nearshore features
- Sediment distribution and seabed characteristics
The resulting data can be presented as bathymetric charts, contours, digital terrain models, colour-coded depth surfaces, cross-sections, point clouds and three-dimensional seabed models.
What is a Bathymetric Survey?
A Type of Hydrographic Survey

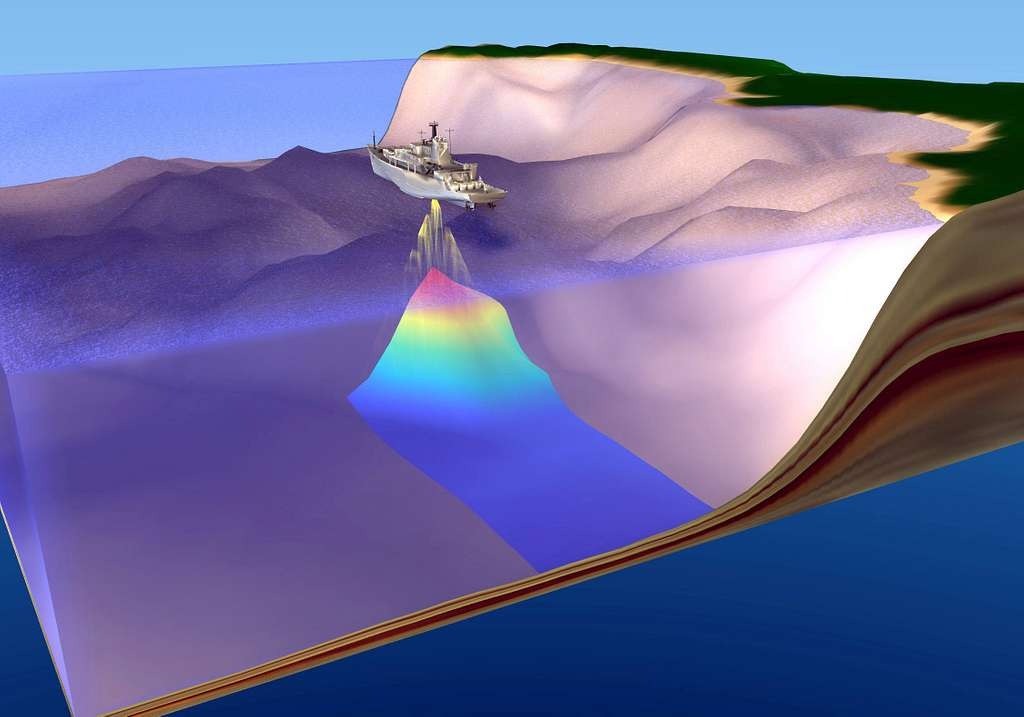

Survey vessels collect bathymetric data to accurately map underwater depths and seabed features.

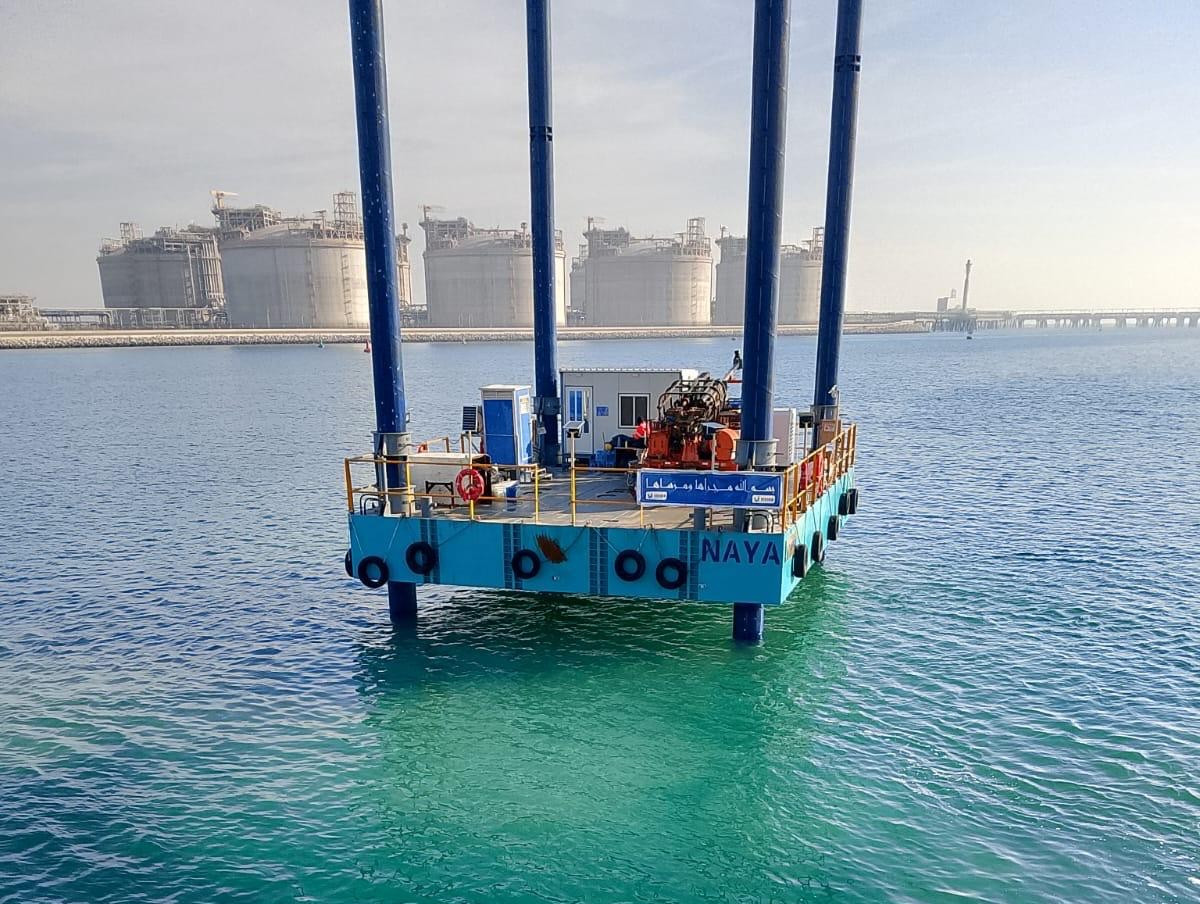

A bathymetric survey is a hydrographic survey used to measure water depth and map the shape, elevation and physical characteristics of underwater terrain. In simple terms, bathymetry is the underwater equivalent of a land topographic survey. While a topographic survey records hills, valleys, slopes and ground features above water, a bathymetric survey records the contours, depths, slopes and features of the seabed or waterbody floor. Bathymetric survey data allows engineers, port operators, dredging contractors, environmental specialists and offshore developers to understand what lies beneath the water before designing, constructing, inspecting or maintaining marine infrastructure. At Vision International General Trading & Contracting Co. W.L.L., we provide bathymetric, hydrographic and marine geophysical survey services for ports, harbors, offshore facilities, submarine pipelines, marine terminals, dredging projects and coastal developments in Kuwait and across the Arabian Gulf. Our marine capability includes multibeam and single-beam echo sounders, side-scan sonar, sub-bottom profilers, marine magnetometers, ADCP current profilers, ROVs, survey vessels and an owned jack-up barge.
Bathymetric Survey
IN DEEP WATER
Deep-water bathymetric surveys are commonly conducted from purpose-equipped marine survey vessels.
Deep-water surveys support offshore developments, pipelines, marine terminals, wind-energy projects, navigation studies, seabed investigations and dredging programmes.The survey vessel may carry an integrated package consisting of:
- Multibeam echo sounders
- Dual-antenna GNSS positioning system
- Motion reference unit
- Sound-velocity sensor or profiler
- Tide or water-level instrumentation
- Survey acquisition computers
- Side-scan sonar
- Sub-bottom profiler
- Marine magnetometer
- ADCP current profiler
The vessel follows a predefined line plan while the onboard team monitors data quality, seabed coverage, vessel motion, positioning and environmental conditions. Preliminary processing can be carried out during acquisition, allowing gaps or questionable areas to be detected and surveyed again before demobilization.
Bathymetric Survey
IN SHALLOW WATER
Mapping underwater depths in shallow water

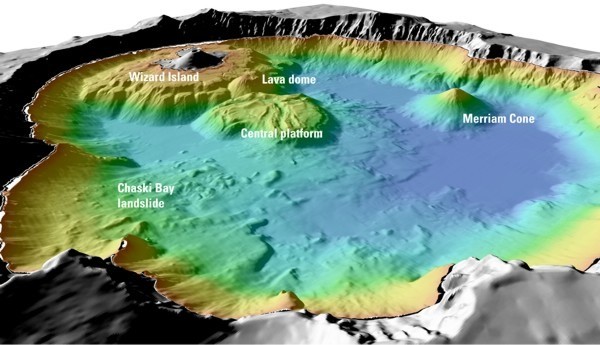

3D bathymetric model of the seafloor.
Shallow-water surveying presents a different set of operational challenges. Conventional vessels may be unable to enter an area because of: • Insufficient water depth • Narrow access • Submerged debris • Strong currents • Reefs, rocks or mudflats • Sensitive environmental habitats • Navigation hazards • Proximity to marine structures.
In these conditions, surveyors may use small boats or unmanned surface vessels, also known as USVs. A USV can carry a single-beam or multibeam echo sounder together with RTK-GNSS positioning and other compact survey sensors.
Shallow-water bathymetry is often required for:
- Shoreline protection
- Seawall projects
- Bridge crossings
- Nearshore pipelines
- Outfalls and intakes
- Outfalls and intakes
- Marinas
- Lagoons
- Coastal erosion studies
- ADCP current profiler
- Environmental assessments
- Nearshore dredging
Vision International’s marine fleet includes survey vessels and unmanned surface vessel capability for confined harbour and shallow-water work.
Bathymetric Survey
APPLICATION
Our Bathymetric surveys provide essential underwater mapping and seabed information throughout the planning, design, construction, and operational stages of marine and water-related projects. They are widely used in dredging projects to establish existing seabed levels, calculate dredging quantities, monitor progress, and verify completed work; in ports and harbours to assess berth pockets, navigation channels, turning basins, anchorages, and other marine areas; and for submarine pipelines and cable routes to identify seabed slopes, obstructions, crossings, free-span risks, and shore approaches. Bathymetric data also supports offshore energy and marine terminals, including platform foundations, mooring systems, offshore wind facilities, jetties, and loading terminals, as well as bridge and marine structure inspections by identifying scour, sediment deposition, channel movement, and underwater obstructions. In coastal engineering, it contributes to hydrodynamic modelling, shoreline protection, breakwater design, reclamation, and sediment-transport studies, while in reservoirs, dams, and waterbodies, repeated surveys help monitor sediment accumulation, storage capacity, and changes in underwater terrain. Additionally, bathymetric surveys support environmental studies, habitat and sediment mapping, water-quality investigations, and environmental impact assessments, as well as marine construction through construction planning, installation control, progress monitoring, and as-built verification.
Typical Bathymetric Survey Deliverables
The deliverables should be agreed before fieldwork because they influence the equipment, coverage, accuracy and processing requirements. A professional bathymetric survey package may include:
- Georeferenced depth measurements
- Bathymetric contours
- Sounding plans
- Digital terrain models
- Digital elevation models
- Three-dimensional seabed surfaces
- Shaded relief maps
- Cross-sections and longitudinal profiles
- Scour assessment drawings
- Obstruction and target schedules
- Seabed slope maps
- Pre- and post-dredge comparison surfaces
- Dredging volume calculations
- Point clouds
- CAD drawings
- GIS datasets
- Survey control information
- Calibration and quality-control records
- Technical survey report
Depending on the client’s requirements, digital data may be delivered in formats compatible with CAD, GIS, hydrographic and three-dimensional modelling software.
Common Uses for Bathymetric Surveys
Bathymetric surveys provide detailed underwater mapping of seafloor depths, contours, and features to support ports, harbors, dredging projects, offshore oil and gas developments, subsea pipelines, coastal engineering, and environmental assessments. Accurate bathymetric data enables safer navigation, better project planning, and more effective marine asset management.
- Navigation Charting
- Port and Harbor Development
- Port expansion planning.
- Dredging Projects
- Pre-dredge surveys.
- Subsea Pipeline and Cable Routing
- Offshore Oil & Gas Projects
- Coastal Engineering & Shore Protection
- Breakwater design.
- Marine Geotechnical Investigations
- Seabed Mapping & Monitoring
- Environmental & Habitat Studies
- Digital Twin & Smart Coastal Infrastructure
How Vision International Performs a Bathymetric Survey
A typical Vision International marine-survey workflow includes:
1. Project planning
We review the survey area, water depths, existing information, deliverables, coordinate reference system, vertical datum, accuracy requirements and marine access conditions.
2. Mobilization and calibration
The selected vessel and sensor package are mobilized. Equipment offsets, positioning systems, motion sensors and sonar systems are checked and calibrated.
3. Data acquisition
The survey vessel or USV follows the planned line pattern while the hydrographic team monitors positioning, seabed coverage, sonar performance, sound velocity and data quality.
4. Processing and quality control
Raw measurements are corrected, filtered, cleaned and referenced to the required datum. Coverage and quality-control checks are completed before surfaces, charts and drawings are generated.
5. Interpretation and delivery
The processed survey data is converted into the agreed engineering deliverables, such as bathymetric charts, seabed models, contours, sections, dredging quantities and technical reports.
Vision International combines marine field crews, surveying specialists, engineers, offshore geotechnical resources and data-processing capability within one organization. The company has operated in Kuwait since 2004 and delivers services across Kuwait, GCC and the Middle East.
Why Choose Vision International for Bathymetric Surveying?
Vision International provides an integrated marine-survey capability for projects in Kuwait and the Arabian Gulf. Our available capabilities include:
- Multibeam echo-sounder surveys
- Single-beam bathymetry
- Side-scan sonar surveys
- Sub-bottom profiling
- Marine magnetometer surveys
- ADCP current measurements
- Tide and water-level monitoring
- ROV inspections
- Marine positioning
- Seabed sampling
- Dredging surveys
- Pipeline and cable-route surveys
- Port and harbour surveys
- Offshore geotechnical investigations
- Survey vessels and USVs
- An owned jack-up barge
This integrated approach can reduce coordination gaps between hydrographic survey, marine geophysics, offshore geotechnical investigation, laboratory analysis and engineering interpretation.
